Product name | Ceramic ball bearing 6203CE 17mm*40mm*12mm | Certification | - |
Category | Ball Bearings | Ingredients | - |
Keyword | hybrid ball bearings 6203ce , medical equipment bearing 6203ce , 17mm*40mm*12mm ceramic ball bearing 6203ce , ceramic ball bearing 6203ce | Unit Size | 17.0 * 40.0 * 12.0 mm |
Brand name | NPG | Unit Weigh | 0 kg |
Origin | China | Stock | - |
Supply type | - | HS code | - |
Product Information:

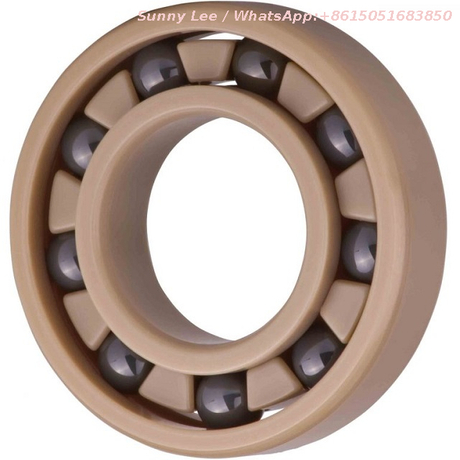

Part No. ceramic ball bearing 6203CE(17mmX40mmX12mm)
Full ceramic bearing ZrO2 material
Full ceramic bearing ZrO2 material has great property such like suitable for low and high temperatures,high load capacity,corrosion resistance, nonmagnetic insulated and self lubrication. Thus it suit for the specific applications which are not available for bearing steel and hybrid construction ceramic ball bearing materials.
Full ceramic bearing Si3N4 material
Full ceramic bearing Si3N4 material has similar property as ZrO2
material, In addition; it has lower weight , better wear resistance, high hardness, and it can bear higher temperature than ZrO2 material.
Structure:
1.Rings(ZRO2/SI3N4)+ Retainer(PEEK/PTFE/NYLON)+Ball( ZRO2/SI3N4)
2. Rings(ZRO2/SI3N4) +Ball( ZRO2/SI3N4) full ball without retainer
Performance:
1.Powerful corrosion resistance - Using possible in strong acid, alkali, sea water
2.Heat-resisting property - No hardness and strength change at high temperature
3.Non-magnetism, insulation resistance - Using possible at magnetic field, prevention of electricity origination
4.Light weight - More light than normal bearing’s 1/4
5.High rigidity - Hardness, straight elasticity coefficient is higher than bearing steel
6.High-speed revolution - The electro motion(ball) is so light that decrease the centrifugal force when it revolute
Applications :
Chemistry Industry; Medical Field; food Machinery; Printing Machinery; Electronic Equipment; petroleum Industry (Semiconductor, PDP, LCD Manufacturing Equipment Composition fiber; Manufacturing Equipment Optic film Equipment and Vacuum Equipment.
Packing:
Vacuum Packing and Single box packing
